Graphite Carbon High Current Slip Rings Carbon Brushes Holder Multi Channel Free Design

JINPAT Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Graphite Carbon High Current Slip Rings Carbon Brushes Holder Multi Channel Free Design

Brand Name : JINAPT

Model Number : LPA000-14500-1250-0902-02E3

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 0K units/week

Delivery Time : 2 weeks ARO5

Packaging Details : Standard/On Request

Number of circuits : 53CKT

Rotating speed : 0~15rpm

Temperature : -10°C~+80°C

Type : Slip Ring

Application : Industrial motor,Industrial Carbon brush

Size : Customers' Requirement

Contact Now

Product Description

Large Current Slip Ring
Model Application area
LPA000-14500-1250-0902-02E3 Dynamic 5D Cinema
Advantages
  • Simultaneous rotary transmission of high power and signals
  • Independent module design to eliminate interference
  • Multi-channel for large current, outer height up to 2.3m, module assembling
Features
  • Built-in ventilation system, low temperature rise
  • Adopts imported graphite brush
  • Precise rotate angel, great transmission performance, smooth and reliable operation

Electrical & Electroni Mechanical Enviromental
Number of
circuits
53CKT
Rotating speed 0~15rpm Temperature -10°C~+80°C
Current
14×500A+12×50A+9×
2A+2×Gigabit Etherne
Contact
material
Precious metal/
copper graphite
Humidity ≤85%RH
Voltage
380VDC
Housing
material
Q235
Protection
Grade
51
Dielectric
strength
≥1000VAC@50Hz
≥300VAC@50Hz
(signal)
Wire type
95/25mm2 rubber wire/AWG26# /
Ethernet cable
Others
Insulation
resistance
≥500MΩ@1000VDC
≥100MΩ@300VDC
(signal)
Wire length
/
Life span Can be customized

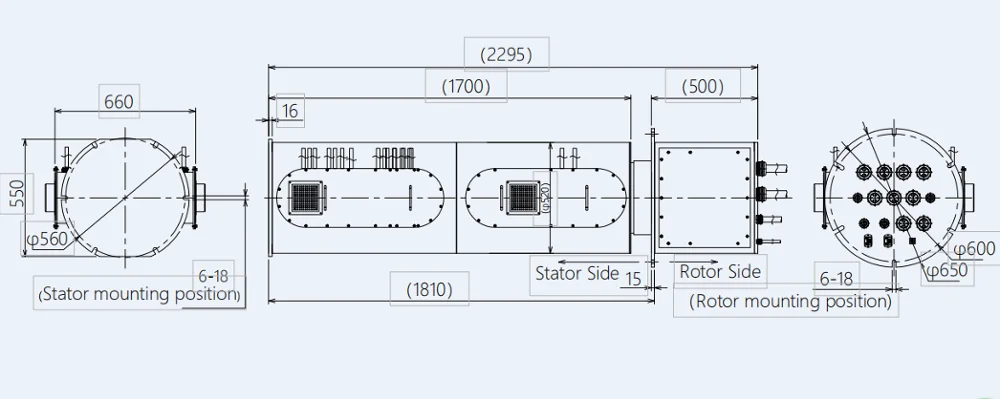

Product outline drawing
Graphite Carbon High Current Slip Rings Carbon Brushes Holder Multi Channel Free Design

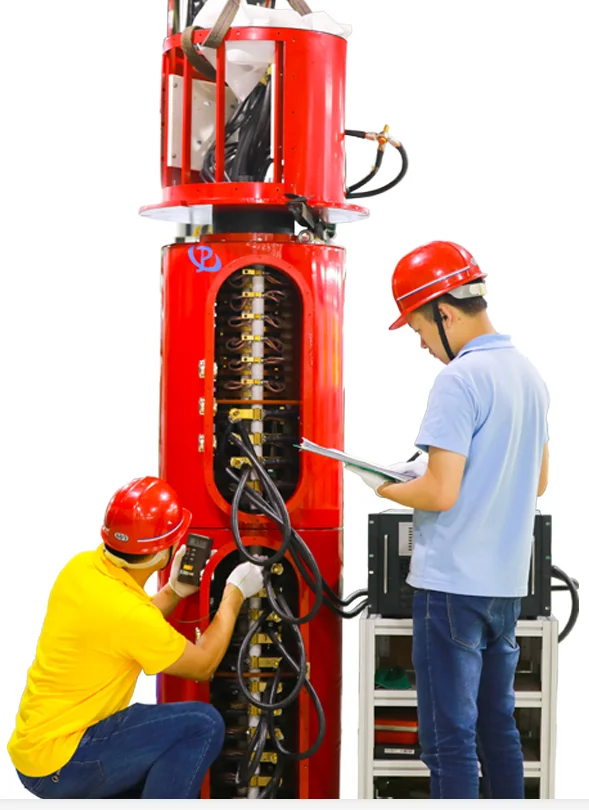

Product Image
Graphite Carbon High Current Slip Rings Carbon Brushes Holder Multi Channel Free Design
JINPAT Electronics entered into slip ring field in 1996. It is a national high-tech enterprise
specializing in the research and development, manufacturing, and sales of slip rings. JINPAT
has a senior R&D team that consists of numerous engineers who have ever worked in multina
tional companies or famous insititutes, which are committed to the development and manu facturing of high-quality slip rings that improve system performance and prevent damage to the wires as they rotate. JINPAT Electronics has passed the ISO9001 quality management system certification, the
ISO14001 environmental management system certification, the UL, FCC, CE, RoHS, REACH, BV
classification societys certification, the explosion-proof certification, and it has obtained 55 national patents. Keeping improving and innovating, JINPAT slip rings are not only reliable in performnace, long in lifespan, free in maintenance, but also with the features of high protection grade, anti-
explosion, anti-quake, anti-impact, high and low temperature resistance, high perssure resistance, low electrical noise and low loss of signal transmission. JINPAT slip rings have been widely used in the navy, army, air force and police force. Our products are also used in the security, industrial automation, power, instrumentation, aviation, transportation, construction, wind power, robotics, medical and other cutting-edge fields. JINPAT Electronics has a long-term relationship with many domestic and foreign industrial technology giants such as GE, Honeywell, CNOOC, BYD, Sany Heavy Industry, Zoomlion, SUZLON, AVIC, CASC, CASIC, CETC, CSIC, and South Surveying & Mapping. JINPAT is committed to a win-win outcome with its customers by providing quality products and services.
